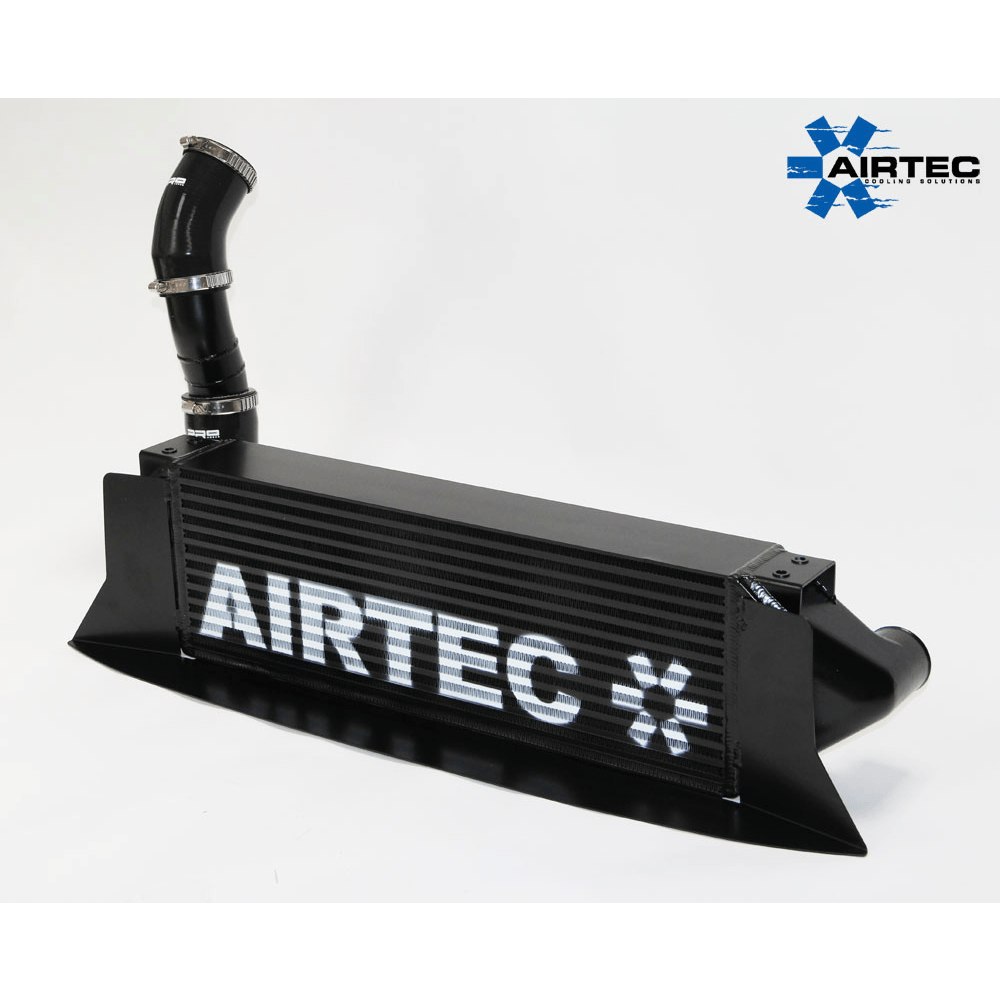

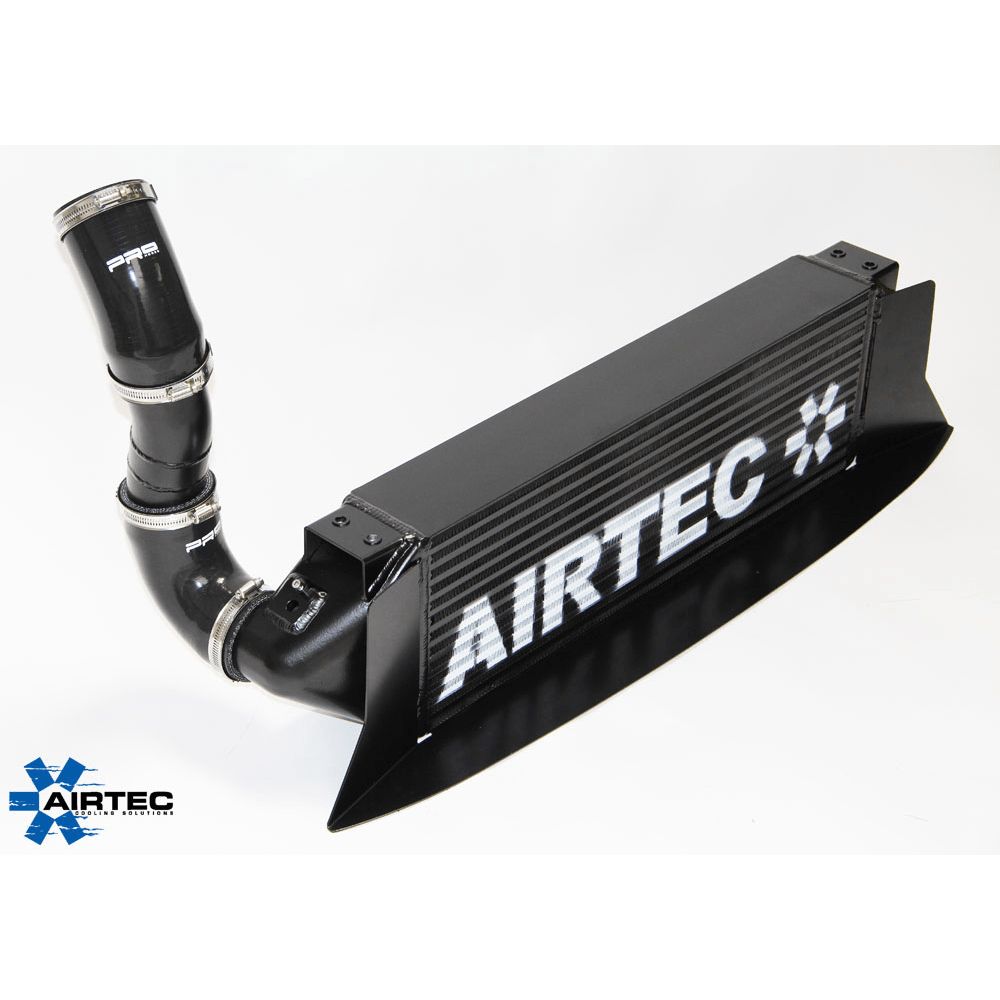

AIRTEC Charger Kit Kit Ford Focus RS Mk2, Stage 3, ATINTFO23

AIRTEC Motorsport offers low-cost yet high-quality solutions for lowering the charge air temperature.
The powerful intercoolers have good cooling properties and less backpressure than standard parts.
The British development team brings its passion for design and performance into every single AIRTEC product.

Not allowed on public roads.

Please tell us when ordering whether the intercooler (in black) with or without AIRTEC logo is to be ordered for you.

TECHNICAL DATA

Airtec stage 3 is the only off the shelf intercooler that uses a 100mm deep core! we use this core only in the most extreme coolers, we name the 100mm core GobStopper due to it's amazing cooling properties

The Airtec stage 2 had to be perfect in the RS Tuning scene as the must have mod for 400 cars, we wanted to take the stage.

Every Stage 3 Intercooler comes with a 70mm cold side pant, if you have a big booster hose fit, your Hot side pipework wants to be fit.

Features of Stage 3.

Smooth flow curved end tanks, for that ultimate flow
Cold side Intercooler end tank made with 70mm outlet to match the throttle body outlet

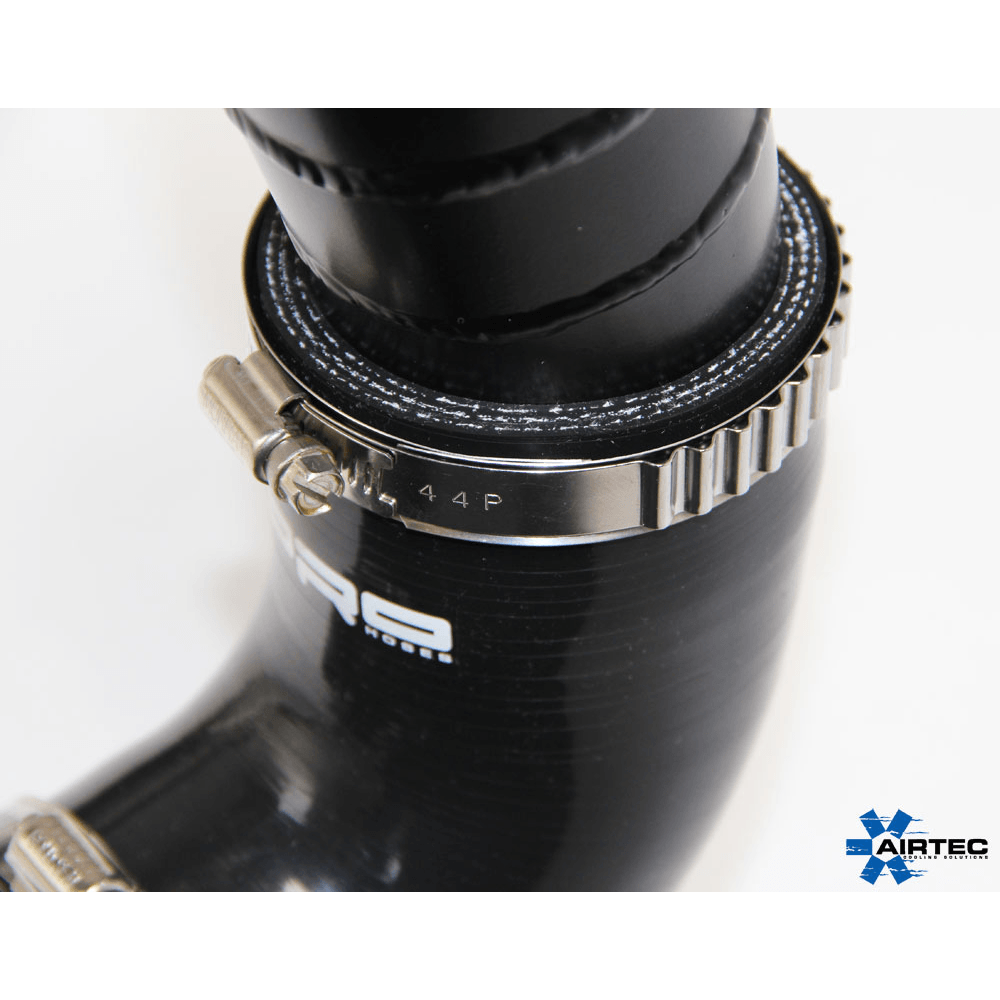

70mm Alloy Silicon Cold Side Hose, If you have a big booster pipe kit fitted, your hot side pipework wants to be fit
Huge high flow 100mm core AKA The GobStopper

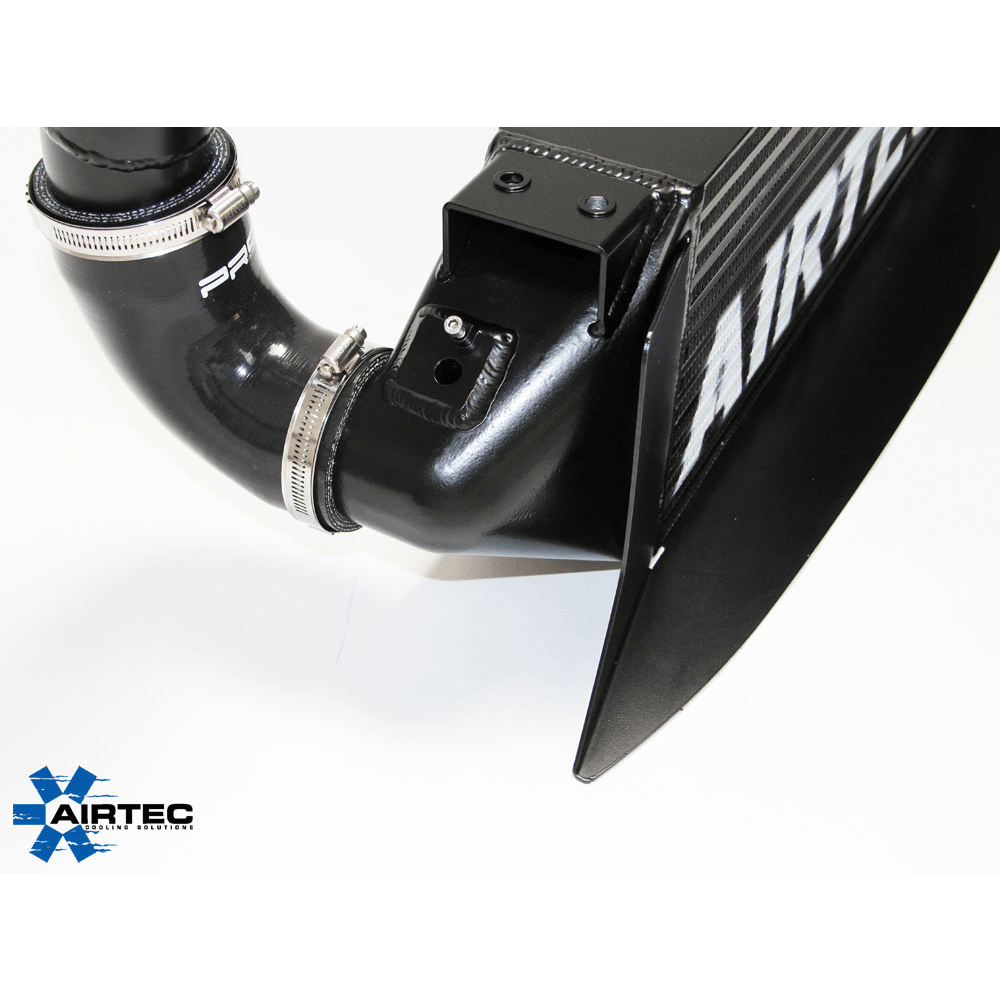

Air-Ram Scoop, forces Air directly into the core of intercooler
Fitting takes 2-3 hours max, NO Bumper removal required
Increased BHP & torque Figure
Available in Pro Series Black or Natural Silver
Strongest Intercooler available, backed up by our 3 year warranty.
Made by Europes No.1 Intercooler supplier for the Mk2 RS
Test results

AIRTEC Stage2 Intercooler Max power 594.2 bhp & 546.3 lbft torque

Run 1 Air temp into Intercooler 164 degrees & Air temp out of Intercooler 25 degrees
Run 2 Air temp into Intercooler 163 degrees & Air temp out of Intercooler 27 degrees
Run 3 Air temp into Intercooler 168 degrees & Air temp out of Intercooler 28 degrees
AIRTEC Stage3 Intercooler Max power 631.5 bhp & 600.5 lbft torque

Run 1 Air temp into Intercooler 166 degrees & Air temp out of Intercooler 21 degrees
Run 2 Air temp into Intercooler 167 degrees & Air temp out of Intercooler 22 degrees
Run 3 Air temp into Intercooler 171 degrees & Air temp out of Intercooler 22 degrees
Gains of 37.3 bhp peak & 54.2 lbft torque increase. This was simply a swap from Stage 2 to Stage 3, please note if you were fitting stage 3 on a 400 bhp car you would not care about the gains like above, this intercooler was designed for Genuine 500 bhp cars, it will improve a 400 bhp car but not to the level of the car on test.
